In the previous chapter we discussed warehouse management and its challenges, and this article will explores the various types of warehouse designs, the challenges faced, best practices, and practical applications for optimizing warehouse layout.

Warehouse layout and design are critical components of efficient supply chain management. A warehouse’s strategic arrangement of space, equipment, and processes directly impacts operational efficiency, order fulfillment speed, and overall cost-effectiveness.

Benefits of having the right warehouse layout design

1. Optimized Space Utilization

  • Increased Storage Capacity:
    • Efficient warehouse layout maximizes storage space, allowing businesses to store more inventory without expanding their physical footprint.
  • Vertical Storage Solutions:
    • Utilizing vertical space through mezzanines or high racks increases warehouse storage capacity without additional floor space.

2. Enhanced Operational Efficiency

  • Improved Material Flow:
    • Well-designed layouts facilitate smooth material flow, reducing bottlenecks and streamlining the movement of goods from receiving to shipping.
  • Reduced Travel Distances:
    • Optimal layouts minimize travel distances for material handling equipment and warehouse staff, leading to faster order picking and fulfillment.
  • Efficient Workflows:
    • Layouts aligned with operational processes enhance warehouse workflow efficiency, reducing the time and effort required for various tasks.

Read more: Picking Process: Warehouse Preparation & Layout

3. Increased Throughput and Productivity

  • Quick Order Fulfillment:
    • The right layout, especially in high-throughput designs like cross-docking or throughflow, enables rapid order fulfillment and promptly meets customer demands.
  • Minimized Order Processing Times:
    • Streamlined processes and well-organized layouts result in faster order processing times, increasing productivity.

4. Cost Reduction and Resource Optimization

  • Lower Operating Costs:
    • An efficient warehouse layout reduces labor costs, energy consumption, and overall operating costs through improved processes and minimizes waste.
  • Optimized Labor Productivity:
    • Well-organized layouts minimize unnecessary labor movements, increasing overall labor productivity.
  • Reduced Carrying Costs:
    • Optimized inventory management in a suitable layout minimizes excess stock and reduces carrying costs.

5. Adaptability to Changes and Growth

  • Scalability:
    • The right warehouse design is scalable, allowing businesses to adapt to changes in inventory size, throughput requirements, and market demands.
  • Flexibility:
    • Easily reconfigured layouts enable businesses to respond quickly to changes in product lines or operational needs.

6. Improved Accuracy and Inventory Control

  • Accurate Inventory Tracking:
  • Reduced Errors in Order Fulfillment:
    • Streamlined layouts minimize errors in order picking and packing, improving order fulfillment accuracy.

7. Enhanced Safety and Compliance

  • Safe Working Environment:
    • Well-designed layouts prioritize safety, with clear aisle markings, proper lighting, and ergonomic workstations, creating a safer working environment.
  • Regulatory Compliance:
    • The right layout ensures compliance with industry regulations and standards, reducing the risk of regulatory penalties.

8. Improved Customer Satisfaction

  • Timely Order Delivery:
    • Quick and accurate order fulfillment from an optimized layout enhances customer satisfaction by meeting delivery expectations.
  • Quality Assurance:
    • Proper storage and handling in well-designed layouts ensure product quality, contributing to positive customer experiences.

9. Strategic Supplier and Distributor Collaboration

  • Effective Communication:
    • Layouts that provide visibility into inventory levels and order statuses facilitate effective communication and collaboration with suppliers and distributors.
  • Supply Chain Integration:
    • Well-designed layouts support seamless supply chain integration, enhancing overall stakeholder collaboration.

10. Sustainability Practices:

  • Energy Efficiency:
    • Green warehouse designs with eco-friendly features contribute to energy efficiency, aligning with sustainability goals and reducing environmental impact.
  • Waste Reduction:
    • Layouts that incorporate sustainable practices help minimize waste in packaging and overall warehouse operations.

Types of Warehouse Layout Designs

1. Single-Aisle Layout

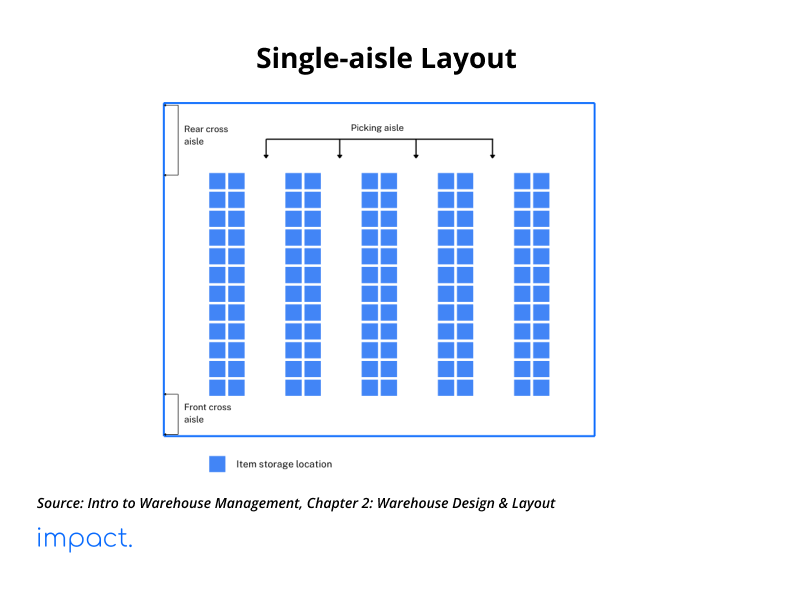

single-aisle warehouse layout design


  • Space Efficiency: Requires less space compared to wider layouts.
  • Lower Construction Costs: Typically more cost-effective to build.


  • Limited Accessibility: This can lead to congestion during peak times.
  • Reduced Efficiency: Slower material handling due to limited aisle space.

Best Suited For:

  • Small to Medium-sized Businesses: Ideal for businesses with limited space and a moderate inventory turnover rate.
  • Low to Medium Throughput: Suitable when material handling volumes are not excessively high.

2. Double-Aisle Layout


  • Improved Accessibility: Reduces congestion and enhances accessibility with two aisles.
  • Flexible Storage: Allows for various racking configurations.


  • Higher Construction Costs: May require more space and thus, higher construction costs.
  • Moderate Efficiency: Balances space efficiency with increased accessibility.

Best Suited For:

  • Medium to Large Warehouses: Suitable for businesses with a larger inventory and higher throughput.
  • Diverse Product Range: Ideal when dealing with various product sizes and types.

3. Cross-Docking Layout

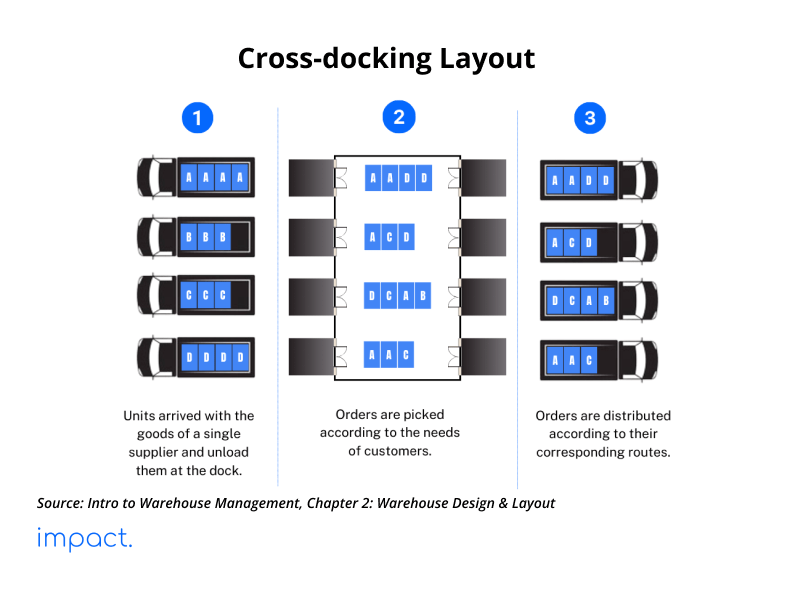

cross-docking warehouse layout design


  • Rapid Throughput: Facilitates quick transfers of goods from inbound to outbound.
  • Reduced Inventory Holding Costs: Minimizes the need for extensive storage space.


  • Limited Storage: Not suitable for businesses requiring extensive inventory storage.
  • Dependency on Real-Time Data: Requires accurate and real-time data for efficient coordination.

Best Suited For:

  • High-Volume Distribution Centers: Ideal for businesses focused on fast-moving consumer goods.
  • Reduced Inventory Holding: Suitable when quick turnover is more critical than extensive storage.

4. Bulk Storage Layout


  • Efficient for Large Quantities: Well-suited for businesses with large quantities of limited SKUs.
  • Lower Picking Costs: Reduces labor costs for bulk picking operations.


  • Reduced Accessibility: Retrieving specific items may be slower due to bulk storage.
  • Limited SKU Variety: Not suitable for businesses with a wide range of SKUs.

Best Suited For:

  • Manufacturing Plants: Ideal for storing raw materials or finished goods in bulk.
  • Stable Inventory: Suitable when dealing with products that don’t require frequent picking.

5. Through Flow Layout

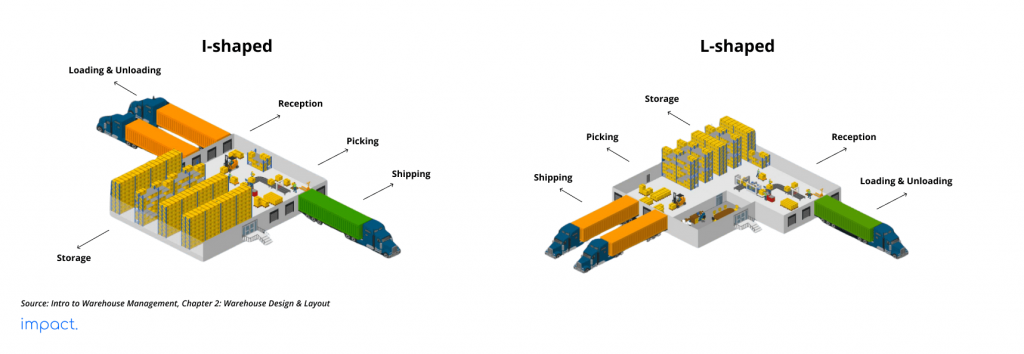

I-shaped & L-shaped warehouse layout design

There are two main types of through flow layouts: I-shaped and L-shaped. In an I-shaped layout, the receiving and shipping areas are located at opposite ends of the warehouse with the storage area in between. In an L-shaped layout, the receiving and shipping areas are located at adjacent corners of the warehouse, with the storage area forming the rest of the L.


  • Continuous Material Flow: Enables a smooth flow of goods from receiving to shipping.
  • High-Speed Order Fulfillment: Ideal for businesses with high-volume, fast-moving inventory.


  • Limited Storage: May not be suitable for businesses with extensive storage needs.
  • Dependency on Efficient Processes: Requires well-optimized and efficient processes.

Best Suited For:

  • E-commerce Warehouses: Ideal for businesses with a high order fulfillment rate.
  • Seasonal Products: Suitable for handling fast-moving seasonal products.

6. U-Shaped Layout

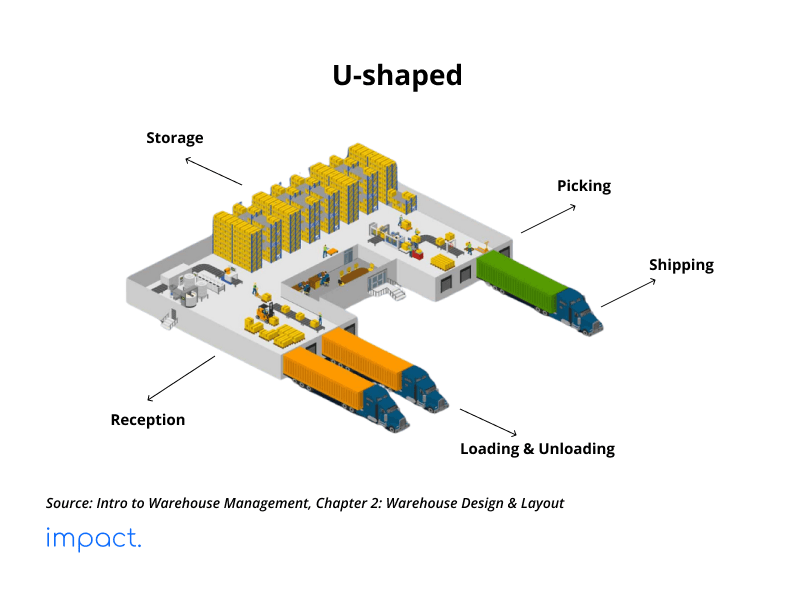

U-Shaped warehouse Layout design


  • Efficient Space Use: Maximizes storage capacity by minimizing aisle space.
  • Streamlined Workflow: Facilitates organized movement of goods, improving operational efficiency.


  • Limited Flexibility: May struggle to adapt to diverse storage needs.
  • Potential Bottlenecks: Risk of congestion at corners or intersections.

Best Suited For:

  • Batch Processing: Ideal for efficient batch processing and order fulfillment.
  • High-Volume, Low-Variety Inventory: Particularly beneficial for handling large quantities of similar products.

How to Choose the Right Warehouse Layout and Design

1. Understand Business Requirements

  • Inventory Characteristics:
    • Assess the characteristics of the inventory, such as size, weight, fragility, and shelf life. Different layouts may be more suitable for certain types of products.
  • Throughput Needs:
    • Determine the expected throughput or the volume of goods flowing through the warehouse daily. High-throughput operations may benefit from layouts that prioritize quick and efficient material flow.
  • Order Fulfillment Speed:
    • Evaluate the speed at which orders need to be fulfilled. For businesses requiring rapid order processing, layouts like cross dock warehouse layout or through flow layout may be preferable.

2. Analyze Storage Requirements

  • Inventory Volume:
    • Consider the volume of inventory the warehouse needs to store. Bulk storage layouts are suitable for large quantities, while through-flow layouts prioritize continuous material flow.
  • SKU Variety:
    • Assess the variety of stock-keeping units (SKUs). Layouts like double-aisle or cross-docking offer more flexibility if dealing with a diverse product range.
  • Storage Density:
    • Evaluate how densely the warehouse needs to store products. High-density storage may favor vertical storage solutions or double-aisle layouts.

Read more: Warehouse Storage System & 4 Essential Warehouse Tools

3. Consider Operational Efficiency

  • Material Handling Equipment:
    • Assess the type of material handling equipment used. Ensure that the chosen layout is compatible with the equipment, optimizing efficiency.
  • Aisle Width and Accessibility:
    • Consider aisle width based on the type of forklifts or other equipment used. Ensure that the layout provides easy accessibility for efficient picking and storing.
  • Workflows and Processes:
    • Analyze existing workflows and processes. Choose a layout that complements and optimizes these processes for increased efficiency.

Read more: 6 Warehousing Equipment for Efficient Picking Process

4. Evaluate Budget Constraints

  • Construction Costs:
    • Consider the budget for construction and implementation. Some layouts may have higher initial costs, so weigh the budget against long-term benefits.
  • Operational Costs:
    • Assess the ongoing operational costs associated with each layout. This includes labor costs, maintenance, and energy consumption.

5. Plan for Growth and Adaptability

  • Scalability:
    • Choose a design that accommodates future growth. A scalable layout can adapt to changes in product lines, increased throughput, or the integration of new technologies.
  • Flexibility:
    • Opt for layouts that offer operational flexibility. The ability to reconfigure the warehouse easily allows adjustments to meet changing business needs.

6. Understand Product Flow

  • Receiving and Shipping Needs:
    • Analyze the requirements for receiving and shipping. Cross-docking layouts prioritize quick transfers, while others may offer more extensive storage during these processes.
  • Order Picking Strategy:
    • Consider the order picking strategy employed. Single-aisle layouts may be suitable for low to medium throughput, while through flow layouts optimize high-speed order picking.

Read more: 3 Picking Strategies in Warehouse Operations

7. Factor in Industry-Specific Considerations

  • Industry Requirements:
    • Consider any industry-specific regulations or requirements that may impact warehouse design. Cold storage facilities, for example, have unique design considerations.
  • E-commerce vs. Traditional Retail:
    • E-commerce warehouses may benefit from layouts prioritizing quick order fulfillment, such as through flow or cross-docking designs.

8. Safety and Compliance

  • Safety Protocols:
    • Prioritize safety in warehouse design. Ensure layouts adhere to safety protocols, including clear aisle markings, proper lighting, and ergonomic workstations.
  • Regulatory Compliance:
    • Consider any regulatory compliance requirements specific to the industry or region.

9. Consult with Experts

  • Engage Warehouse Design Professionals:
    • Consider consulting with warehouse design professionals who can provide expertise and insights based on industry best practices.
  • Seek Employee Input:
    • Involve warehouse staff in the decision-making process. Their insights into daily operations can offer valuable perspectives.

10. Review Case Studies and Success Stories

  • Industry Benchmarks:
    • Research case studies and success stories in the industry. Understanding what has worked well for similar businesses can provide valuable guidance.
  • Learn from Mistakes:
    • Learn from common mistakes in warehouse design by studying instances where certain layouts may not have been suitable.

Challenges in Warehouse Layout and Design

  1. Space Limitations:
    • Overcoming limited space for storage and operational processes.
    • Balancing the need for warehouse storage capacity with the demand for efficient material handling.
  2. Inventory Management:
    • Designing layouts that accommodate various SKU types and sizes.
    • Minimizing the risk of errors in inventory tracking and management.
  3. Technology Integration:
    • Ensuring seamless integration of Warehouse Management Systems (WMS) and other technologies.
    • Overcoming potential disruptions during the transition to automated systems.
  4. Labor Efficiency:
    • Optimizing layouts to reduce excessive travel distances for warehouse staff.
    • Minimizing labor-intensive tasks through automation without compromising safety.
  5. Adaptability to Change:
    • Designing layouts that can adapt to changes in product demand and market dynamics.
    • Overcoming resistance to change from existing workflows and staff.

Warehouse Layout Best Practices

  1. Utilize Vertical Space:
    • Implement multi-level storage systems and mezzanines to maximize vertical space.
  2. Zone-Based Layout:
    • Divide the warehouse into zones based on product categories, improving organization and efficiency.
  3. Implement Technology Solutions:
    • Integrate WMS, RFID, and other technologies for accurate inventory tracking and real-time visibility.
  4. Flexible and Modular Design:
    • Design layouts that can adapt to changing operational needs, allowing for scalability.
  5. Prioritize Safety:
    • Ensure clear aisle markings, proper lighting, and ergonomic workstations to enhance safety.

Also read: Creating a Warehouse Layout: 5 Essential Steps

Practical Applications of Warehouse Layout and Design

  1. E-commerce Warehousing:
    • Implementing high-density storage systems to accommodate a large variety of SKUs.
    • Incorporating automation for efficient order picking and packing.
  2. Cold Storage Warehousing:
    • Designing layouts that optimize energy efficiency in temperature-controlled environments.
    • Ensuring accessibility for perishable goods with proper zoning and storage.
  3. Retail Distribution Centers:
    • Implementing cross-docking layouts to minimize storage time and expedite product distribution.
    • Utilizing through flow layouts for efficient handling of fast-moving consumer goods.


Warehouse design and layout are dynamic processes that require careful consideration of space, technology, and operational needs. By understanding the various types and implementing best practices, warehouses can optimize layouts for increased efficiency, safety, and adaptability.

Manual processes of warehouse design and layout often struggle with accurate forecasting and space optimization. These challenges can lead to inefficiencies and increased costs. Warehouse Management Systems (WMS) offer a solution by automating processes, providing real-time visibility, and enabling dynamic adjustments.

Furthermore, if your company is facing operational issues such as accounting, HR, sales, purchase, or manufacturing, you should implement an ERP system with integrated modules.

Read more: What Is ERP (Enterprise Resource Planning) – A Complete Guide

The next chapter will discuss about inventory management and its success factors.


Cold Storage Warehousing

  • Definition: The storage of goods at controlled low temperatures. This is particularly important for products that require refrigeration or freezing, such as perishable food items or pharmaceuticals.


  • Definition: Logistics strategy where incoming goods are directly transferred from the receiving dock to the outbound transportation dock with minimal or no storage time. It aims to reduce the need for warehousing space and speed up the distribution process.

Distribution Centers

  • Definition: Facilities used to store, process, and distribute goods. They are key components in the supply chain, acting as hubs where products are received, sorted, and then sent out to retailers, wholesalers, or directly to customers.

Ergonomic Workstations

  • Definition: Designed work areas and equipment to optimize human well-being and overall efficiency. This includes considering factors such as posture, movements, and the physical well-being of workers to enhance productivity and reduce the risk of injuries.

Inventory Management

  • Definition: Overseeing the levels and movement of stocked goods within a warehouse. It includes activities such as tracking stock levels, order fulfillment, and maintaining an optimal balance between supply and demand to prevent overstock or stockouts.

Labor Costs

  • Definition: The expenses associated with employing workers, including wages, benefits, and training. Managing labor costs is crucial for optimizing warehouse efficiency and overall operational expenses.

Material Handling Equipment

  • Definition: Tools and machinery used for the movement, storage, and control of materials within a warehouse. Examples include forklifts, conveyors, pallet jacks, and automated guided vehicles (AGVs).

Order Fulfillment

  • Definition: The process of receiving, processing, and delivering customer orders. It involves picking, packing, and shipping items from the warehouse to the end customer.

Order Picking

  • Definition: The process of selecting items from the warehouse inventory to fulfill a customer’s order. It is a critical aspect of order fulfillment and significantly affects overall warehouse efficiency.

Shipping and Receiving

  • Definition: Shipping involves preparing and dispatching goods for delivery while receiving involves accepting and processing incoming shipments. These are essential functions in a warehouse that contribute to the overall flow of goods.


  • Definition:The rate at which goods move through the facility. It is a measure of the efficiency of the warehouse processes and is often expressed in terms of the number of units processed per unit of time.

Impact Insight Team

Impact Insights Team is a group of professionals comprising individuals with expertise and experience in various aspects of business. Together, we are committed to providing in-depth insights and valuable understanding on a variety of business-related topics & industry trends to help companies achieve their goals.

WhatsApp Us
